advantages

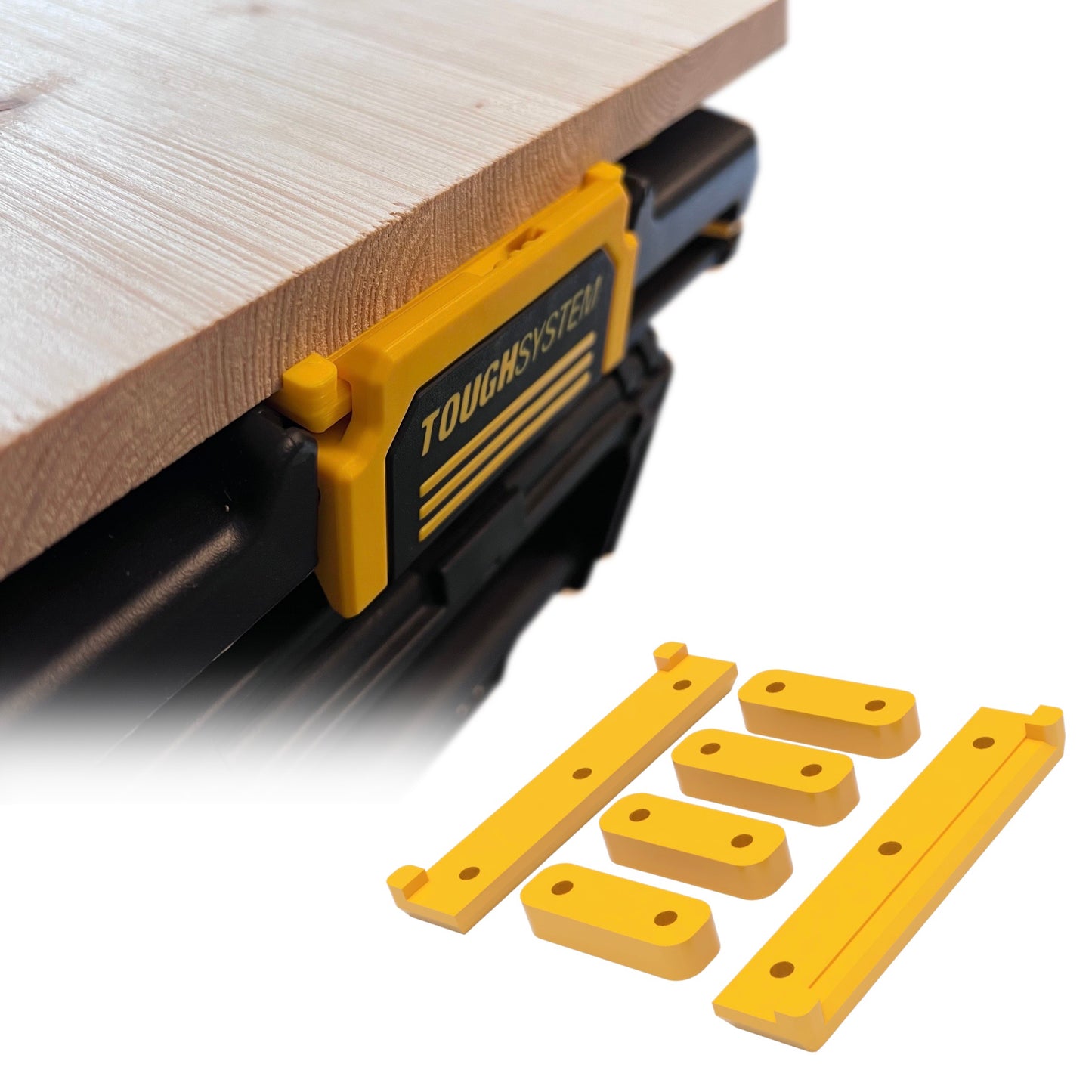

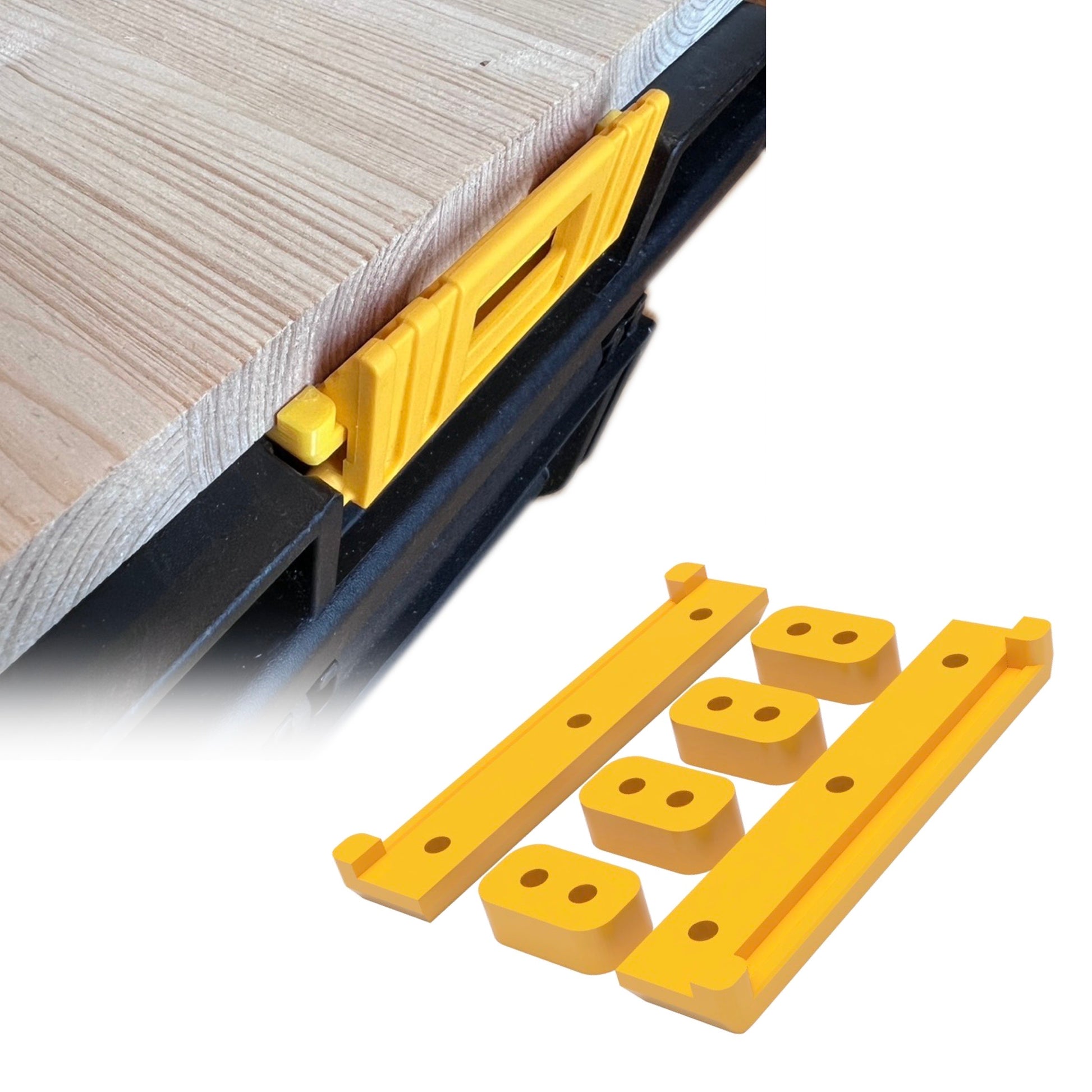

• Solid attachment of worktops and other attachments on your case system.

• festivals Fixation via the ToughSystem locking (1.0 / 2.0) and easy insertion via precisely fitting adapter feet. Choose the right variant - these differ slightly .


• extra slim design - no gap between case and worktop. Robust design and massively 3D printed .

• When used with the ToughSystem 2.0 cases, the latch will still remain in place after opening .

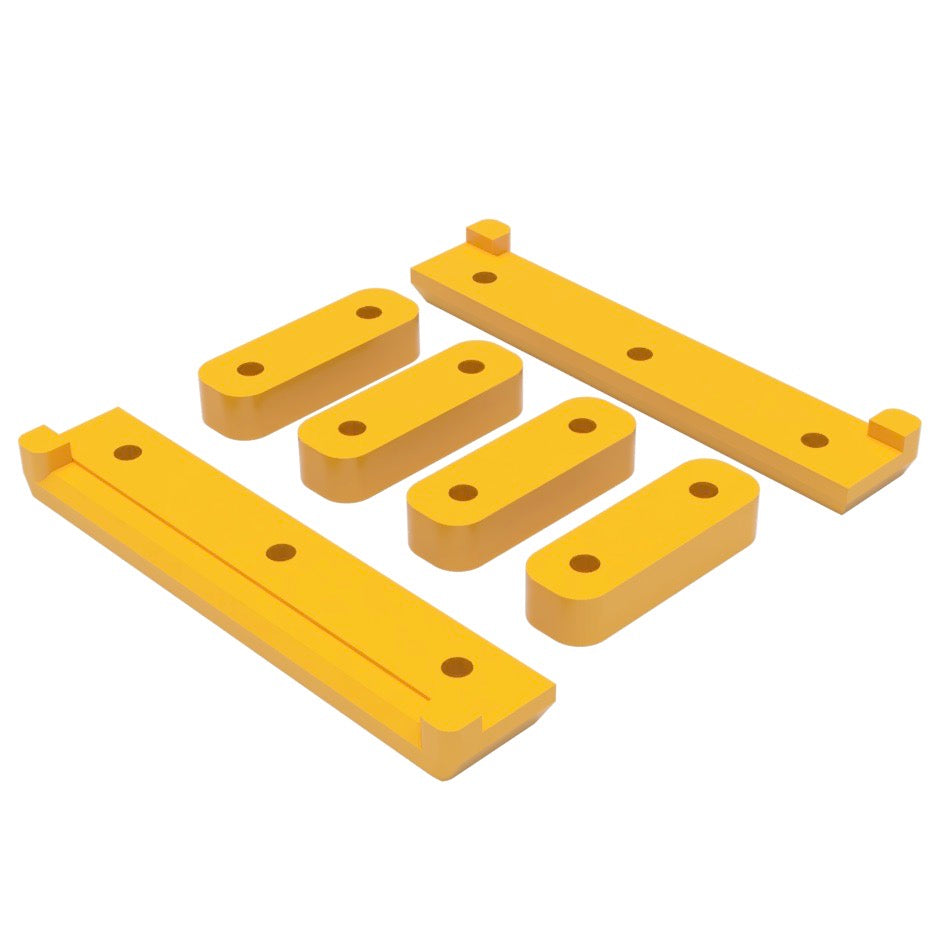

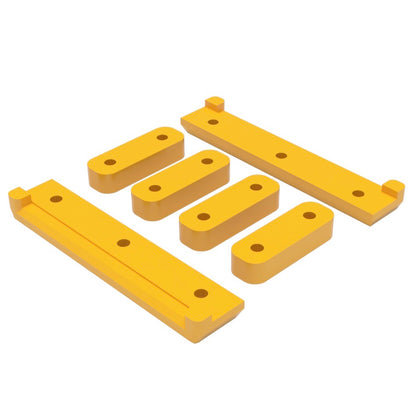

• Included in delivery: two (2) locking holders and four (4) adapter feet. Cases, worktops or fastening material are not included in the scope of delivery.

Assembly

• Mount the two holders on the cut worktop and place the adapter feet in the centering of the case. Attach double-sided tape or scotch tape to the adapter feet. We recommend doing the procedure for one side first before mounting the other side.



• Now place the worktop with holder optimally on the case. It is correct when the TSTAK lock is vertical.



• Take out the worktop. The adapter feet should now be optimally aligned and stick to the worktop.



• Fasten these adapter feet with screws. Repeat the assembly of the adapter feet on the other side. Then your countertop should be kept solid and perfectly aligned.



compatibility

Compatibility with ToughSystem 1.0:

• Suitcase DS150
  dewalt DWST 1-70-321


• Suitcase DS300
  dewalt DWST 1-70-322

Compatibility with ToughSystem 2.0:

• Suitcase DS165
  Dewalt DWST83293-1

• Suitcase DS400
  Dewalt DWST83342-1

• tool box DS450
  Dewalt DWST83295-1

Compatibility with other cases cannot be guaranteed - if in doubt, please contact us. Cases, worktops or fastening material are not included in the scope of delivery. The products offered are not from Dewalt.
